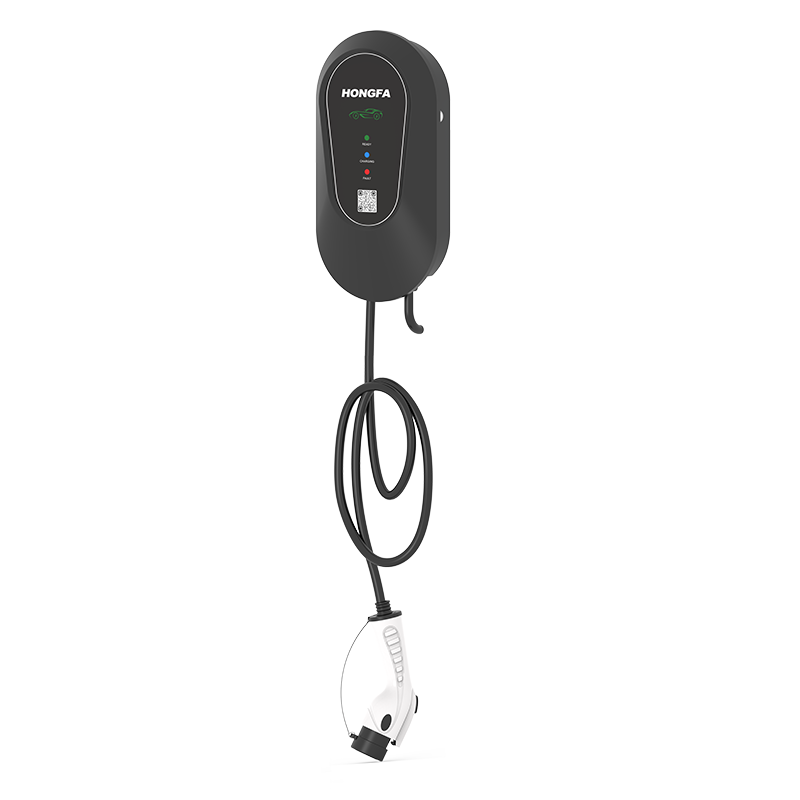

HF-CA07-32E 7.4kW TYPE2 AC EV CHARGER
7.4kW Type 2 AC wall-mounted charging pile is designed for the fast and stable charging needs of European standard electric vehicles, in accordance with IEC62196 standards, suitable for Type 2 interface. The charging pile has multiple built-in security protection mechanisms to guard the charging process in an all-round way. The wall-mounted design fully considers the use of space, the appearance is simple and stylish, the lines are smooth, the compact structure and the lightweight body.
Features
- Novel appearance, compact size, wall-mounted installation to save space.
- Widely applicable to all types of electric vehicles, whether BEV、PHEV、REEV, all can use our charger.
- Safe guarding measures: multiple protection features.
- Designed to meet European requirements.
- Support Bluetooth、Wifi、4G、LAN.
- Support mobile APP and QR code charging.
- The product supports MQTT and OCPP1.6J protocols and can switch between them.
- Products have received TUV CE certification and report and SGS RoHS 2.0 report.
Strength
● Rated power: 7.4kW
● Input voltage: AC230V ± 10%
● Input frequency: 50/60Hz
● Output voltage (AC): 750V, 1000V
● Output current (AC): 16A, 32A, 48A
● Charging gun length: 5m
● Number of charging guns: 2 x 1 European standard Type
● Charging gun plug-in life: 10000 times
Appliance
Charging Station
