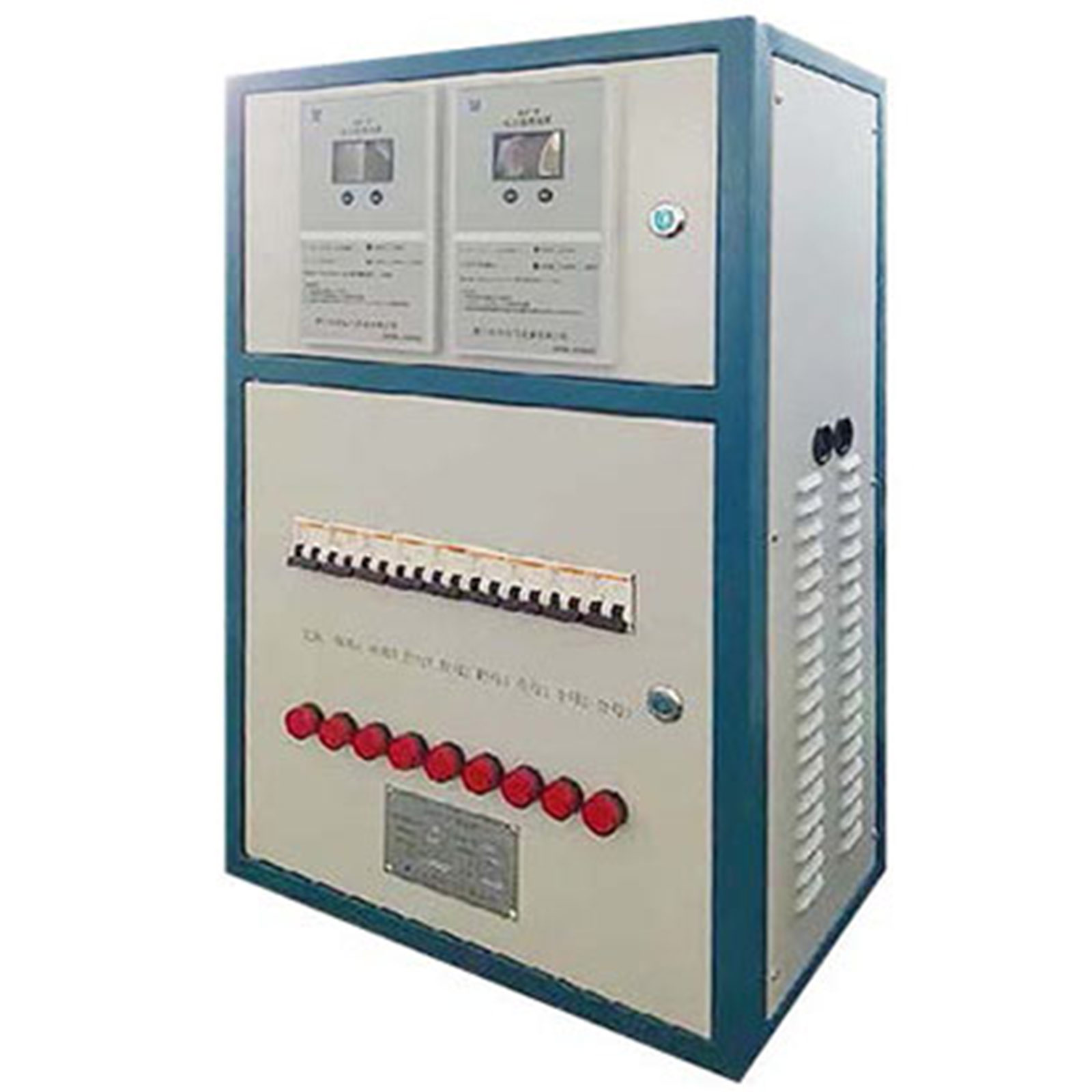

GZDW-2
Intelligent Wall Mounted DC Power Supply Device
The GZDW-2 Intelligent Wall-Mounted DC Power Supply Device is designed specifically for substations, switch stations, and end-user terminals. It is an intelligent, integrated wall-mounted power supply that utilizes parallel current-sharing technology to enable maintenance without power interruption. Suitable for industries such as mining, petrochemical, construction, and end-user terminals, it serves as the operational and control power source for high-voltage switches, relay protection, and automation devices, and can also function as a low-voltage backup power source. The system includes 4 lead-acid batteries and features battery activation, battery testing, overvoltage, and overcurrent protection.
Features
● AC input voltage range: 220VAC ± 20%
● Input voltage frequency 50Hz
● Rated DC output voltage: DC220V, 110V, 48V, 24V optional
● Rated output current: 2/3/5A
● Voltage stabilization accuracy: ≤± 0.5%
● Stable current accuracy: ≤± 1%
● Ripple factor: ≤ 0.5%
● Power factor: ≥ 0.95%
● Relative humidity: 0~90%
● Working mode: Continuous long-term operation
● Cooling method: intelligent temperature control air cooling/efficient natural cooling
● Atmospheric pressure ranging from 80 to 106KPa
● Protection functions: output circuit protection, host module protection, battery protection
● Host module: display function includes
● Current sharing function: Yes
● Power supply system mode: parallel connection
● Battery installation method: Installation inside the cabinet (optional outside the cabinet)
Strength
● Automatic battery activation and testing, with comprehensive system protection features.
● Output current sharing ensures stable current output, balancing the output of each individual battery and preventing
● single battery failures from affecting the entire battery group's lifespan.
● Parallel system allows multiple units to be connected for redundancy, enhancing system reliability.
● Enables maintenance without power interruption, facilitating easy repairs.
● Moderate capacity, with batteries arranged within a single cabinet.
● Compact design for wall-mount installation, saving space.
Appliance
Industrial and Mining Enterprises
Petrochemical Industry
Building Materials
